Showcase: Rover and Arduino Line Follow

Using I2C and an Arduino Nano, a QTR-8RC line sensor array can be attached to the Rover to undertake advanced line follow. This guide is a showcase of how this can be done.

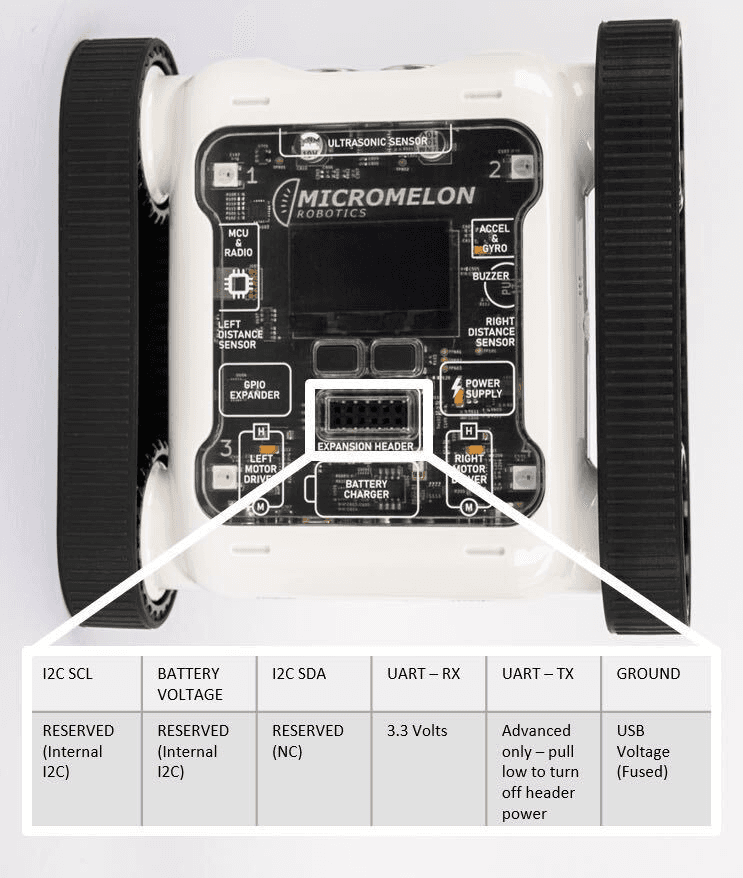

An overview of the I2C protocol and how to use it with the Rover can be found here.

The Sensor (QTR-8RC)

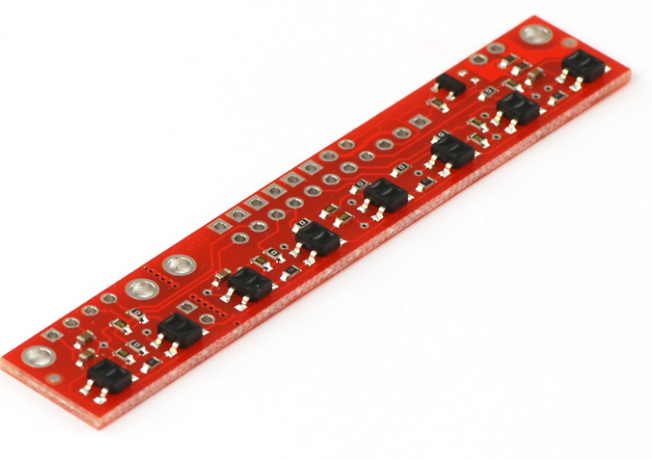

The Pololu QTR-8RC is an array of 8 infrared sensors spaced approximately 9.5cm apart. The advantage of using 8 sensors for line following is that the robot's speed can be significantly increased as there is a much lower chance of losing the line when moving. When paired with the QTR library, the sensor array can calculate the line's location relative to it, returned as a value between 0 and 8000. If the line is lost, the sensor also can remember the last sensor that saw the line in the array.

The Arduino:

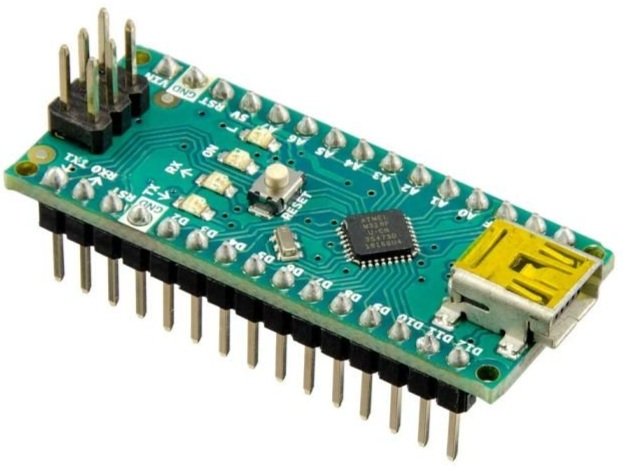

The Arduino Nano is the microcontroller used to control the QTR sensor. With the sensor plugged in, the Arduino uses the QTR library to locate the line's position under the sensor. The Arduino can then communicate with the Rover through the I2C communication protocol. The Rover requests data and receives a buffer containing the line's location determined by the infrared sensor array. This buffer is 2 bytes large because the maximum returned value of 8000 is larger than what a single byte can hold.

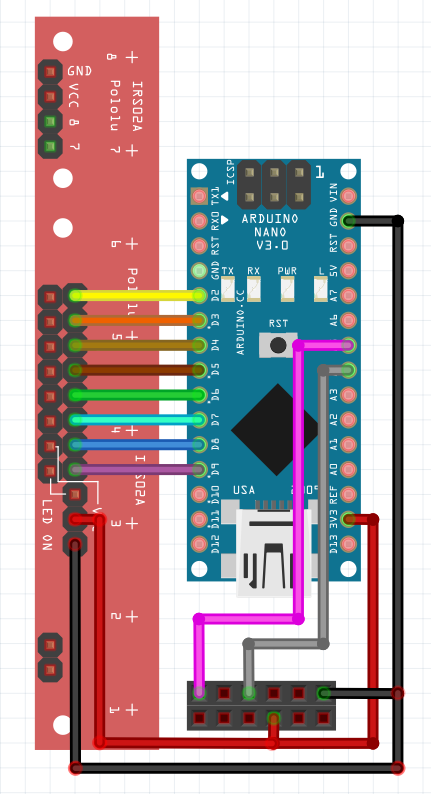

Further information on the code and the wiring diagram can be found below.

#include <QTRSensors.h>
#include <Wire.h>

#define ADDRESS 10
QTRSensors qtr;

const uint8_t SensorCount = 8;
uint16_t sensorValues[SensorCount];

uint16_t position = 2000;
void setup()
{
  Wire.begin(ADDRESS);
  Wire.onRequest(readSensor);
  // configure the sensors
  qtr.setTypeRC();
  qtr.setSensorPins((const uint8_t[]){9, 8, 7, 6, 5, 4, 3, 2}, SensorCount);

  delay(500);
  pinMode(LED_BUILTIN, OUTPUT);
  digitalWrite(LED_BUILTIN, HIGH);

  for (uint16_t i = 0; i < 400; i++)
  {
    qtr.calibrate();
  }
  digitalWrite(LED_BUILTIN, LOW);
}

void loop()
{
  position = qtr.readLineBlack(sensorValues);
}

void readSensor(){
  byte buf[2] = {(position & 0xFF00) >> 8, position & 0xFF};
  Wire.write(buf, 2);
}

The Rover

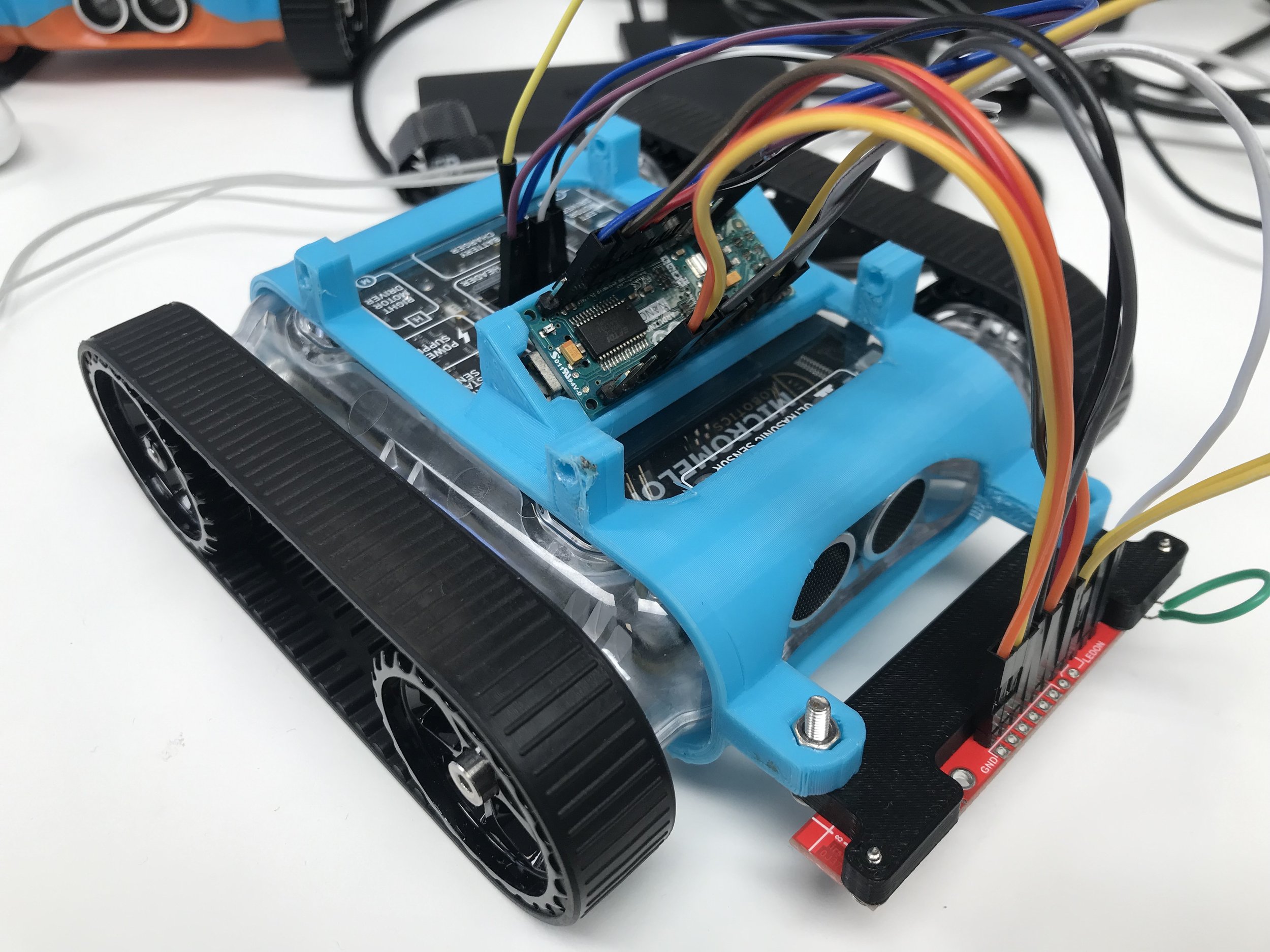

A 3D-printed mount was designed to mount the Arduino and the line sensor array. Once all the electronics were connected, the code to request the data from the Arduino was uploaded to the Rover. The snippet below was used to request the data from the Arduino. Using the read_sensor function, the Rover could receive incoming data from the Arduino.

ADDRESS = 10
REGISTER = 0x1

def read_sensor():
  packet = I2C.read(ADDRESS, REGISTER, 2)
  packet = (packet[0] << 8) | packet[1]
  return packet

The above concepts were then assembled to create a PID line follower.
